Standards
GB 8808、GB 13022、GB/T 1040、GB/T 7753、GB/T 7754、GB/T 453、GB/T 17200、GB/T 16578.1、QB/T 1130、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 10004、GB/T 17590、JJG 139、GB/T 6344、GB 10808、YBB 00112003、YBB 00102003、YBB 00132002、YBB 00202004、ASTM D828、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

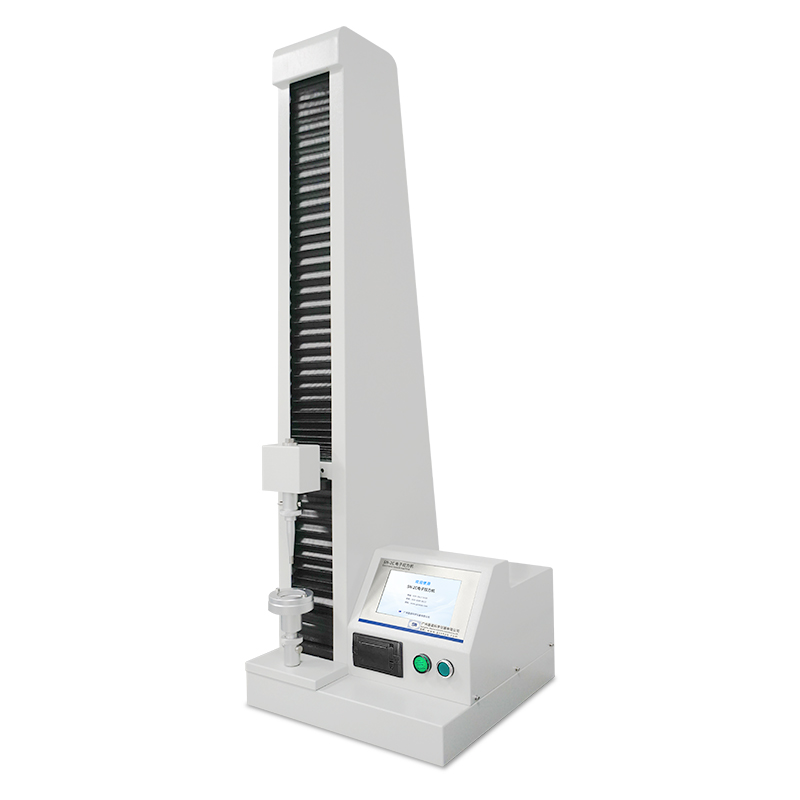

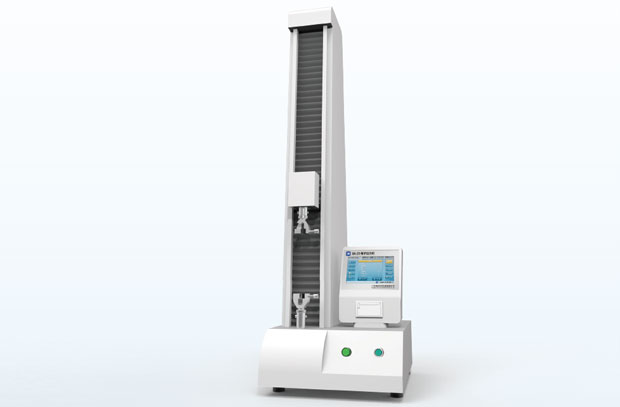

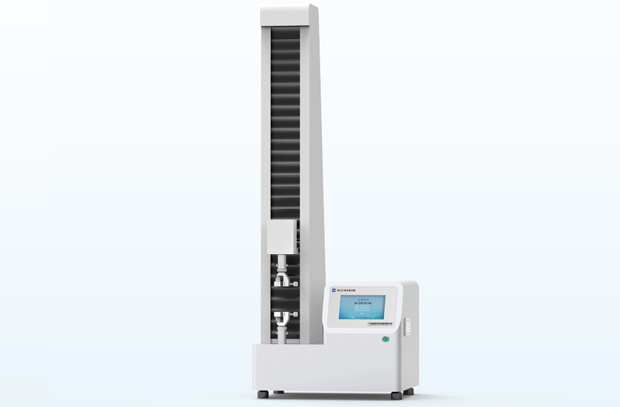

Suitable for testing mechanical properties such as tensile, peeling, heat sealing, tearing, and puncturing of various materials, including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, paper, and non-woven fabrics. It offers high precision, easy operation, intuitive results, and high reliability. Meeting the technical requirements of national supervision departments, it is widely used for quality control in industries such as plastic films, food, pharmaceuticals, and new materials, as well as in research institutions and universities.
The specimen is clamped between two grips that move relative to each other. A force sensor on the moving grip and a built-in displacement sensor collect data on force and displacement changes during the test. These data are then used to calculate performance indicators such as tensile strength, tearing strength, and deformation rate.
- Comprehensive test functions, capable of performing tensile, peeling, heat sealing, tearing, and puncturing tests. Multiple parameters such as specimen thickness and grip distance can be freely configured.
- Equipped with multi-level protection devices for safe and reliable operation; the lead screw design ensures enhanced durability.
- Core components are imported to ensure high precision.
- Touchscreen operation provides enhanced convenience and intuitive data display.
- Calibration parameters are password-protected to prevent accidental modification.
- Stepless speed regulation allows for adjustable test speeds.
- Capable of displaying real-time test curves.
|
Item
|
Parameter
|
|
Test Range
|
0-300N
|
|
Sensor Accuracy
|
Grade 1
|
|
Force Resolution
|
0.01N
|
|
Displacement Resolution
|
0.01mm
|
|
Tensile Speed
|
0 - 500 mm/min (Stepless speed regulation)
|
|
Tensile Stroke
|
800mm
|
|
HMI
|
LCD Display, Curve Display
|
|
Print Output
|
Modular Integrated Thermal Printer
|
|
Operating Environment
|
Temp. 23±2°C, Humidity 55% RH ± 20
|
|
Dimensions
|
440mm*500mm*1400mm
|
|
Net Weight
|
55kg
|
|
Standard Configuration
|
Mainframe, Tensile Grips, Power Cable, Puncture Fixture
|
