Standards
GB 8808、GB 13022、GB/T 1040、GB/T 7753、GB/T 7754、GB/T 453、GB/T 17200、GB/T 16578.1、QB/T 1130、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 10004、GB/T 17590、JJG 139、GB/T 6344、GB 10808、YBB 00112003、YBB 00102003、YBB 00132002、YBB 00202004、ASTM D828、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

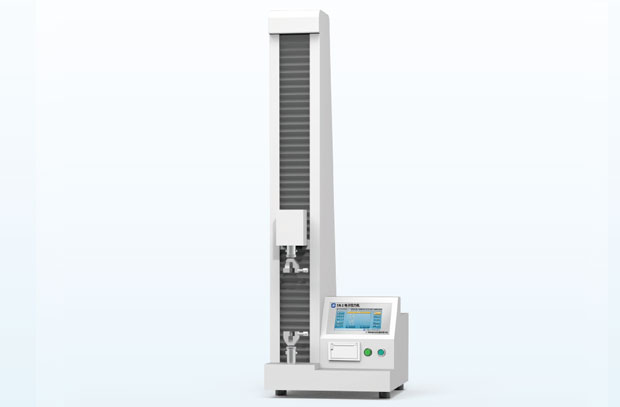

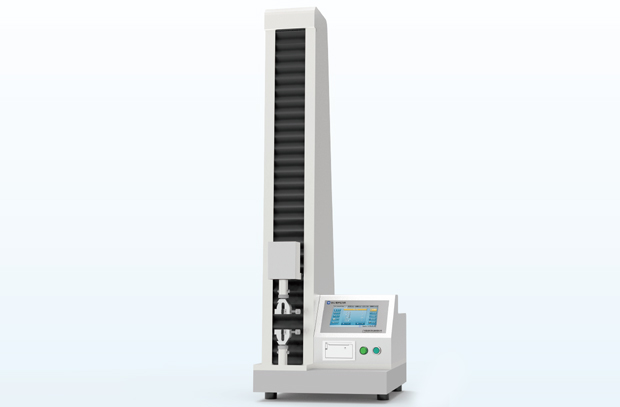

Suitable for testing mechanical properties such as tensile, peeling, heat sealing, and tearing of various materials, including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, paper, and non-woven fabrics. It offers high precision, easy operation, intuitive results, and high reliability. Meeting the technical requirements of national supervision departments, it is widely used for quality control in industries such as plastic films, food, pharmaceuticals, and new materials, as well as in research institutions and universities.
The specimen is clamped between two grips that move relative to each other. A force sensor on the moving grip and a built-in displacement sensor collect data on force and displacement changes during the test. These data are then used to calculate performance indicators such as tensile strength, tearing strength, and deformation rate.
- Comprehensive test functions, capable of performing tensile, peeling, heat sealing, and tearing tests. Multiple parameters such as specimen thickness and grip distance can be freely configured.
- Equipped with multi-level protection devices for safe and reliable operation; the small lead screw design ensures enhanced durability.
- Core components are imported to ensure high precision.
- Touchscreen operation provides enhanced convenience and intuitive data display.
- Calibration parameters are password-protected to prevent accidental modification.
- Stepless speed regulation allows for adjustable test speeds.
|
Item
|
Parameter
|
|
Test Range
|
0-300N
|
|
Sensor Accuracy
|
Grade 1
|
|
Force Resolution
|
0.01N
|
|
Displacement Resolution
|
0.01mm
|
|
Tensile Speed
|
0 - 300 mm/min (Stepless speed regulation)
|
|
Tensile Stroke
|
800mm
|
|
HMI
|
Touchscreen Display
|
|
Print Output
|
Modular Integrated Thermal Printer
|
|
Operating Environment
|
Temp. 23±2°C, Humidity <75% RH
|
|
Dimensions
|
440mm*440mm*1300mm
|
|
Standard Configuration
|
Mainframe, Tensile Grips, Power Cable
|
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
