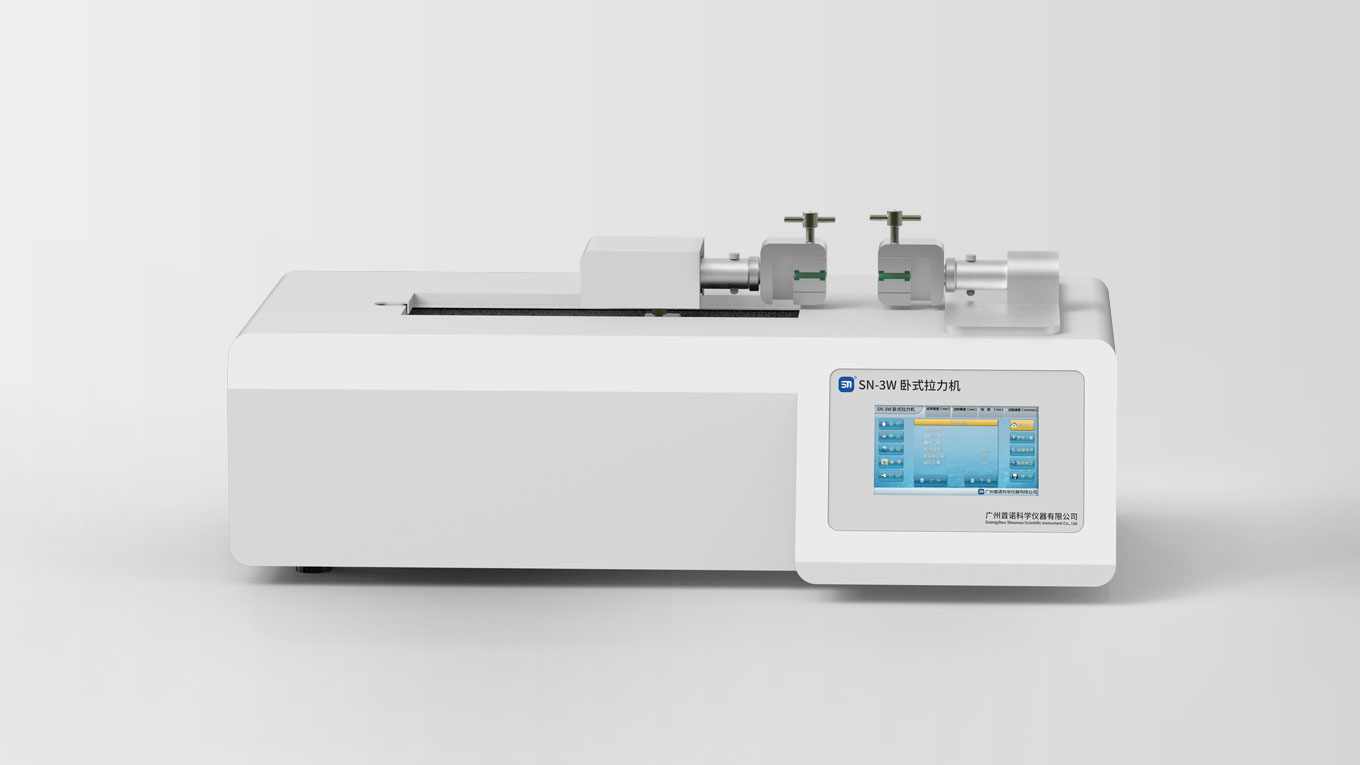

SN-3WE Horizontal Tensile Testing Machine

1. The horizontal tensile testing machine is suitable for testing the mechanical properties of various plastic films, flexible packaging, and other packaging materials, including tensile, peel, heat seal, and tear tests.
2. With a horizontal structure, it is especially suitable for the horizontal clamping and testing of long strip, large-deformation, and low-load specimens. It offers high precision, convenient operation, intuitive observation, reliability, and wide applicability, and complies with the testing technology requirements of national technical supervision authorities. It is widely used by plastic film, food, pharmaceutical, and new material manufacturers, product quality control and testing institutions, and schools for scientific research and teaching experiments.

The specimen is clamped between the two grips of the horizontal fixture. The two grips move relative to each other in the horizontal direction. A load cell mounted on the moving grip and a built-in displacement sensor collect changes in force and displacement during the test, thereby calculating performance indicators such as tensile properties, tear properties, and deformation rate of the specimen. The horizontal tensile mode reduces the influence of specimen self-weight on test results and is more suitable for mechanical property testing of long strip and large-deformation specimens.

1. Comprehensive testing functions: it can perform tensile, peel, heat seal, tear, and other tests. Multiple parameters such as sample thickness and grip distance can be set freely.
2. Horizontal structural design with horizontal clamping and stretching; convenient specimen clamping and intuitive observation; suitable for testing long strip, large-deformation, and low-load materials.
3. Equipped with multi-level protection devices for safe and reliable test operation; the small lead screw design provides greater durability.
4. All core components are imported, ensuring high precision.
5. Touchscreen operation is convenient, and data are displayed intuitively.
6. Calibration parameters are password-protected to prevent accidental modification.
7. Stepless speed regulation; test speed can be changed.

GB 8808、GB 13022、GB/T 1040、GB/T 4850、GB/T 7753、GB/T 7754、GB/T 453、GB/T 17200、GB/T 16578.1、QB/T 1130、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 7122、GB/T 10004、GB/T 17590、JJG 139、GB/T 6344、GB 10808、YBB 00112003、YBB 00102003、YBB 00132002、YBB 00202004、ASTM D828、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358

Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

Mainframe, Tensile Grips, Power Cable, Sampling Board
