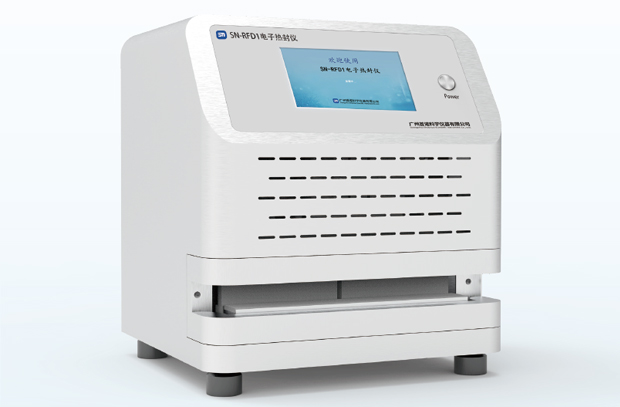

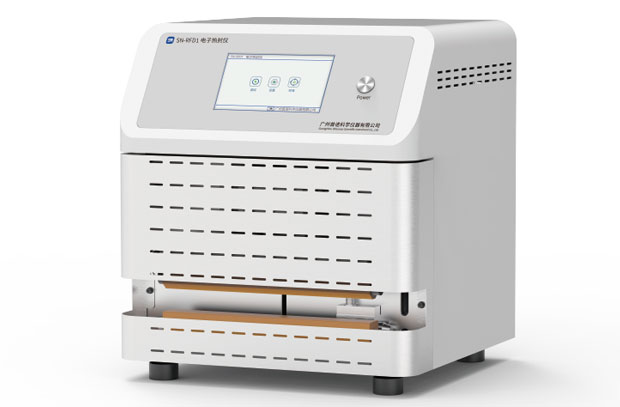

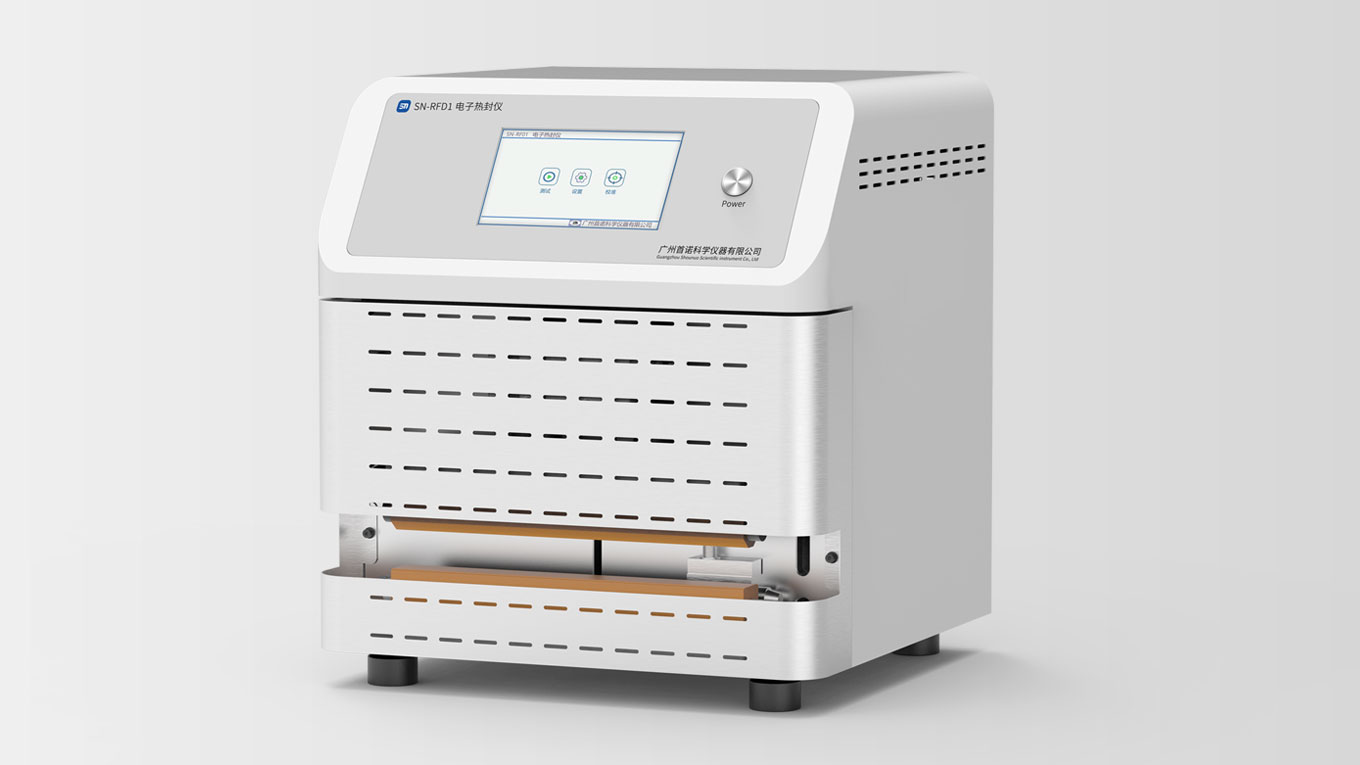

SN-RFD1E Heat Sealer

Standards

QB/T 2358、ASTM F 2029、YBB 00122003

Application Fields

Intended Use

Suitable for heat sealing tests of various film materials, including plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, and aluminum foil composite films.

Operating Principle

Utilizes the heat-pressure sealing method. The specimen is placed between the upper and lower heat-sealing jaws, and sealing is completed under preset temperature, pressure, and time conditions.

Product Features

Dual temperature, dual control, and dual display. Features an external three-axis cylinder for smoother downward pressure; all core components are imported.
Digital P.I.D. temperature control technology reaches the set temperature rapidly and prevents temperature fluctuations effectively.
A wide range of control for temperature, pressure, and time satisfies diverse experimental requirements.
Manual and foot-switch start modes, plus anti-scald safety design, ensure convenience and operational safety.

Technical Parameters

Item	Parameter
Heat Sealing Temp	Ambient +5 ~ 300°C
Temp. Accuracy	±0.1°C (customizable 0.01°C)
Sealing Time	0.01s~99.99h
Sealing Pressure	0~8kg(0~0.8Mpa)
Sealing Area	300 * 10mm Smooth (Lower jaw with silicone pad)
Heating Form	Dual Heating
Dimensions	430402480mm
Power Supply	AC 220V/50Hz

Equipment Configuration

Standard Configuration

Mainframe, Foot Switch, Power Cable

User-provided Items

Compressed Air
