Standards
QB/T 1057-199、GB/T454-2002、ISO-2759、GB-6545、JIS-P8112、L1018、ASTM-D2210、TAPPI-T403
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

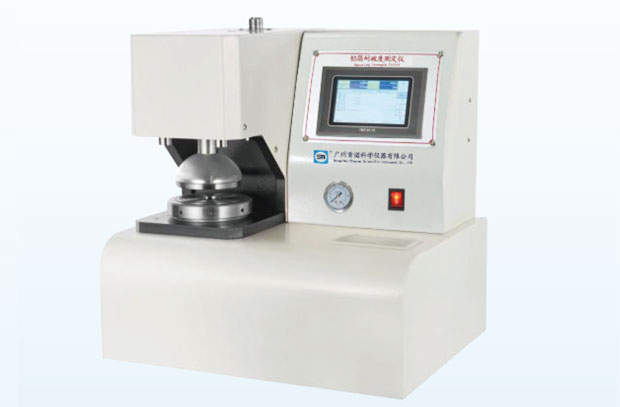

Designed to measure the bursting strength of single or multi-layer paper. It is also applicable for testing the bursting strength of fabrics, films, leather, paperboard, and thin metal foils, making it an indispensable equipment for quality inspection.
The instrument utilizes advanced signal transmission to monitor pressure. Upon the specimen's rupture, the system automatically retains the peak bursting strength value. Its resolution is 100 times higher than traditional analog gauge-style testers.
Data Visualization: Features real-time recording of data curves and allows the review of multiple sets of historical test data.
|
Item
|
Parameter
|
|
Accuracy
|
≤±0.5%
|
|
Resolution
|
0.01kpa
|
|
Deformation Error
|
≤1mm
|
|
Platen Concentricity
|
≤0.25mm
|
|
Diaphragm Resistance
|
(9±0.2)mm/(30±5)kPa
|
|
Pumping Rate
|
95±5ml/min
|
|
HMI
|
3.2-inch 320*240 Dot-matrix LCD
|
|
Clamping Force
|
400kpa~1200kpa(Adjustable)
|
|
Unit Conversion
|
Kg/cm2、kpa、lbf/in2
|
|
Print Output
|
Modular integrated thermal printer
|
|
Operating Environment
|
Temp. (20±10)°C, Humidity <85%RH
|
|
Measurement Range
|
50-1200kpa Paper / 250-5600kpa Board (Optional)
|
|
Platen Diameter
|
Upper φ30.5±0.1mm , Lower φ33.1±0.1mm
|
Standard Configuration
Mainframe, Additional Accessories.
User-provided Items
Compressed Air (Pressure≥0.4MPa)
