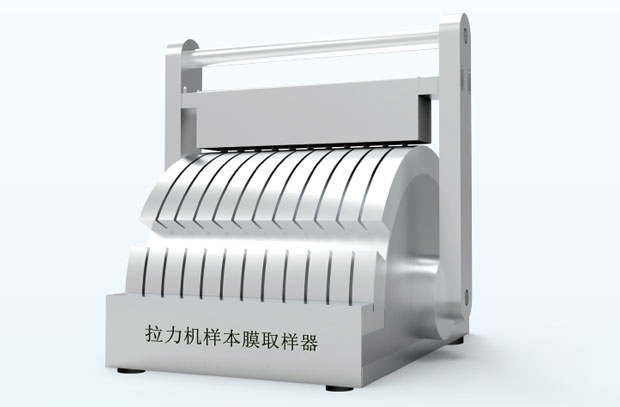

SN-CY2E Sample Cutter

Intended Use

Used for sample preparation of various materials such as plastic films and papers before tensile, peeling, and heat-sealing tests. This product features a compact structure and easy operation. The cut samples have smooth edges without burrs, effectively eliminating experimental errors caused by improper sample preparation.

Operating Principle

Place the sample on the cylinder so that its length exceeds the distance between the two clamping slots. Secure the sample with the fixtures and rotate the handle to complete the cutting process.

Product Features

User-friendly operation, convenient to use, and offers a long service life.
Provides precise sample dimensions with zero damage and smooth, burr-free edges.
Utilizes spring tension to secure samples accurately and firmly.
Can cut up to 10 samples in a single operation, meeting the needs for batch sample preparation.
The cutting width can be customized according to specific customer requirements.

Technical Parameters

Item	Parameter
Sample Size	15mm*210mm
Number of Samples	10 (Single layer)
Specimen Thickness	≤1 mm (Not suitable for rigid sheets or hard materials like PVC
Dimensions	250mm380mm200mm
Standard Configuration	Mainframe, One box of Dedicated Blades
