Standards
ISO5628、ISO2493、TAPPIT556、GB/T-22364、GB/T23144、QB/T1051
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

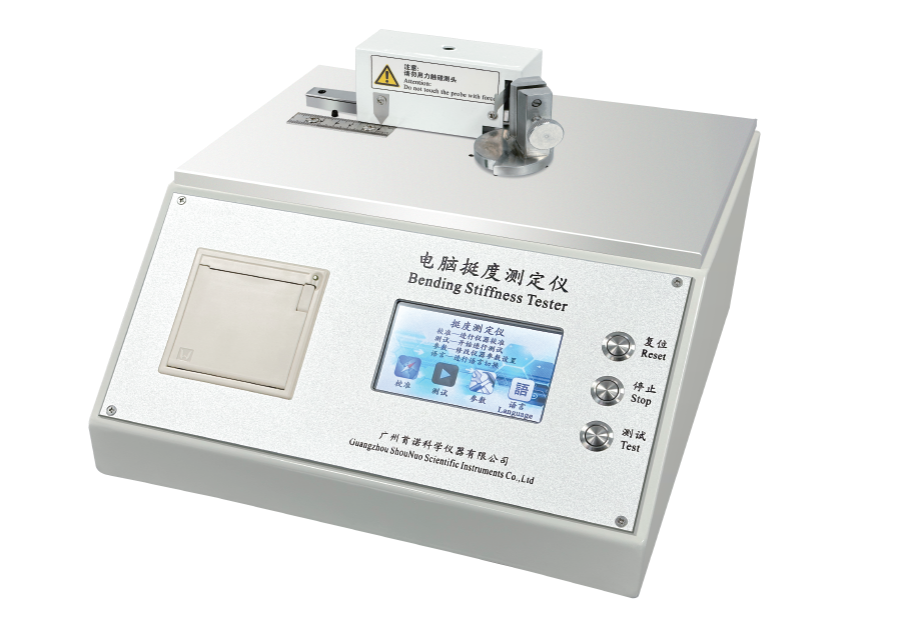

An index for measuring the bending resistance of paper and paperboard, this instrument is a specialized device for determining the stiffness of films and paper.
The computerized stiffness tester is designed based on the static bending principle. By bending the free end of a vertically clamped specimen, the resistance measured when the specimen reaches a specific bending angle is defined as the bending stiffness, expressed in mN; or as the product of the resistance and the test length, expressed in mN.m.
- High-end configuration and advanced technological performance.
- Employs single-chip microcomputer control technology, equipped with an aluminum alloy panel and standard buttons that are sensitive and durable.
- Features an LCD Chinese display, fully automated testing processes, and automatic reset of the measuring head.
|
Item
|
Parameter
|
|
Measuring Range
|
(0-500) mN or (0-25) mN.m
|
|
Resolution
|
0.01 mN
|
|
Accuracy
|
Indication error ±1%, Indication variability ≤1%
|
|
Test Speed
|
300º/min or 200 º/min
|
|
Rated Bending Angle
|
7.5° and 15° (Adjustable from 0-90º)
|
|
Load Arm Length
|
Standard 50mm, 5-50mm (Adjustable)
|
|
Specimen Size
|
70mm × 38mm (L × W)
|
|
Dimensions
|
330×340×290mm
|
|
Mass
|
Approx. 14kg Ambient
|
|
Temperature
|
20℃±10℃
|
|
Relative Humidity
|
<85%
|
|
Power Supply
|
AC 220V ± 22V, 50Hz
|
Mainframe, Other Accessories.
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
