Standards
GB7706、ASTMD5264、TAPPI-UM486、ISO9000
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

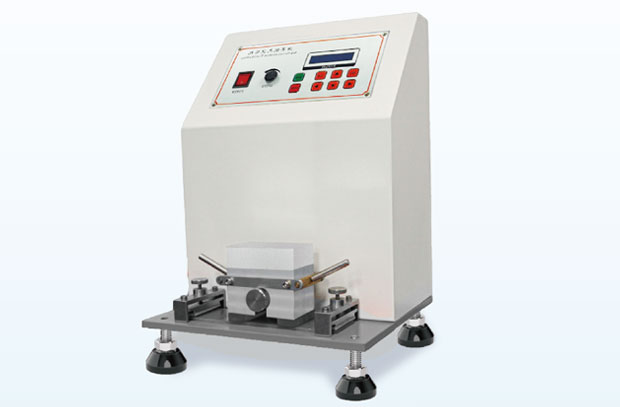

This ink abrasion tester is specifically designed to evaluate the rub resistance of printed ink layers on various substrates. Based on international standard rubbing loads and regulated speeds, it performs reciprocal friction tests on specimens such as paper, paperboard, and leather to determine ink adhesion and durability.
The abrasion resistance of the ink or coating layer is determined by measuring the reduction in optical density (or coating thickness) before and after the friction test.
Control System: Microcomputer-controlled with a clear LCD for real-time monitoring and parameter setting.
|
Item
|
Parameter
|
|
Specimen Area
|
230mm*60mm
|
|
Rubbing Stroke
|
60mm
|
|
Cycle Setting
|
0-9999, Automatic Stop
|
|
Rubbing Area
|
150mm*50mm
|
|
Rubbing Speed
|
4 adjustable speeds : (21/43/85/106c.p.m); 43c.p.m is the National Standard
|
|
Rubbing Load
|
10N (approx. 2lb ); 20N (approx. 4lb , National Standard )
|
|
Power Voltage
|
AC 220V/50Hz
|
|
Standard Configuration
|
Mainframe, Rubbing Blocks (2lb and 4lb weights), Additional Accessories
|
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
