Standards
GB/T 17876、BB/T0025、BB/T 0034(GB/T 14803)、ASTM D 2063、ASTM D 3198、ASTM D 3474
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

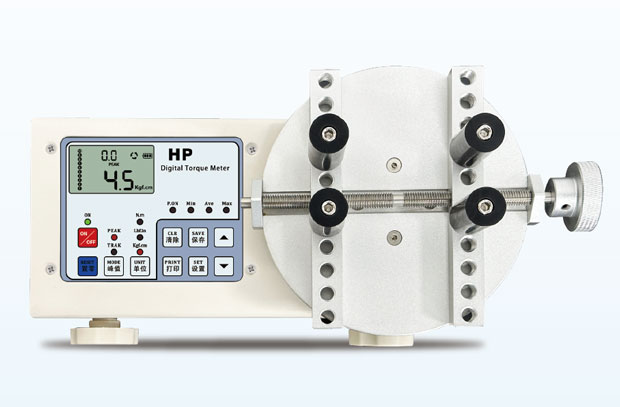

Designed to measure the tightness of bottle stoppers and caps using specialized fixtures. It is also applicable for destructive testing of small components and quality control of plastic screws and threaded fasteners.
Adjust the position of the fixture's gripping pillars according to the bottle size. Place the bottle into the fixture, adjust the knobs to secure the container, and then proceed to tighten or unscrew the cap to measure the torque.
- Digital Display: Features a high-definition LCD screen that displays real-time torque values for simple and precise reading.
- Dual Modes: Equipped with both Data Tracking (real-time) and Peak Hold functions.
- Unit Conversion: Supports seamless switching between three torque units: Lbf.in, kgf.cm, and N.m.
- Bi-directional Measurement: Capable of measuring torque in both clockwise and counter-clockwise directions to evaluate both tightening and loosening force.
|
Item
|
Parameter
|
|
Measuring Range
|
0~10kgf.cm/50kgf.cm/100kgf.cm±0.5%FS
|
|
Unit Conversion
|
kgf.cm/.ibf.in/N.m
|
|
Measuring Mode
|
Track , Peak Hold
|
|
Battery Life
|
Approx. 300 recharge cycles
|
|
Continuous Use
|
Approx. 20 hours
|
|
Dedicated Charger
|
Input: AC 220V~240V; Output: DC 7.2V 400mA
|
|
Power & Charging
|
1.2V Ni-MH battery plus 5; Charging time: 6 hours
|
|
Standard Configuration
|
Mainframe, Additional Accessories (Gripping pillars, Charger, etc.)
|
