Standards
GB/T 7600-1987、GB 6283-1982、SH/T 0246、GB/T 11133-1989、GB/T 1600、GB/T 11146、GB/T 12717、GB/T 5074
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

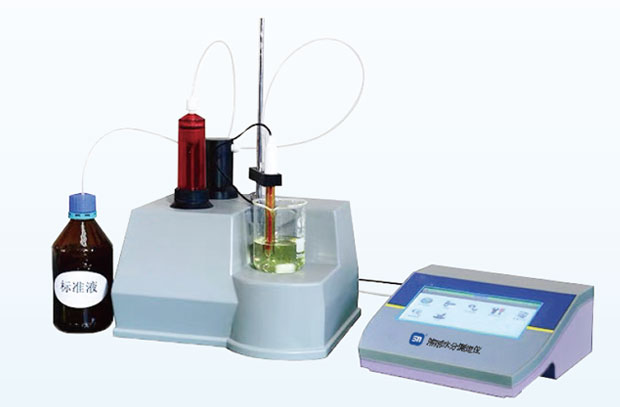

Integrating advanced mechatronic design with a user-centric interface, this instrument is capable of determining crystal water, adsorbed water, and free water in liquid, solid, and gaseous specimens. It is extensively utilized in industries such as petroleum, chemicals, pharmaceuticals, daily chemicals, food, agriculture, and various laboratory environments.
The moisture analyzer utilizes the Karl Fischer Volumetric Method for moisture determination, offering high measurement precision alongside a streamlined and user-friendly operation.
- Large Color LCD: Features a high-definition color screen with a comprehensive Chinese menu-driven interface.
- Intuitive Operation: Provides real-time dynamic prompts and a Windows-style operational logic for exceptional ease of use.
- Comprehensive Data Display: Simultaneously displays moisture content, percentage, PPM, and reagent consumption. Includes a dynamic color titration curve and automatic memory for measurement results.
- Drift Compensation: Automatically deducts drift moisture and tracks ambient moisture fluctuations in real-time to ensure the highest analytical accuracy.
- PWM Stirring Control: Utilizes Pulse Width Modulation (PWM) for stepless stirring speed adjustment, selectable directly via the menu.
- Fully Sealed System: The airtight design allows for automatic solvent replacement and waste discharge, effectively preventing the leakage or overflow of toxic reagents.
- Real-time Monitoring: Instantaneous display of instrument status, metering pump volume, current time, three-way valve position, and drift rate.
|
Item
|
Parameter
|
|
Measurement Range
|
0.001%-100%
|
|
Resolution
|
0.01ml
|
|
Display Mode
|
Extra-large Color LCD
|
|
Titration Flow Rate
|
Automatic control
|
|
End-point Delay
|
10-300s (Adjustable)
|
|
Indication Error
|
≤2%
|
|
Power Supply
|
AC 220V/50Hz
|
|
Standard Configuration
|
Mainframe, One set of Installation Accessories, Power Cable.
|
|
Optional Accessories
|
Printer
|
|
User-provided Items
|
Karl Fischer Reagent, Anhydrous Methanol.
|
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
