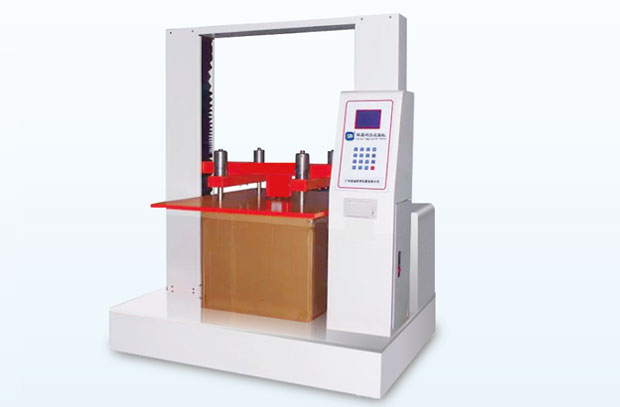

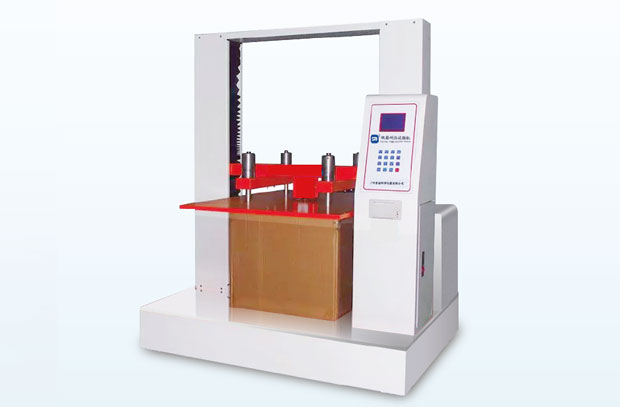

SN-ZXE Carton Compression Tester

Standards

GB/T16491-2008、GB4857.4、GB/T4857.16、ISO2872、ASTMD642、ASTM D4169、TAPPIT804、ISO2872、ISO12048、JIS Z0212

Application Fields

Intended Use

Specifically designed for compression, deformation, and stacking tests of packaging containers, including corrugated boxes, honeycomb crates, and paper tubes.

Operating Principle

The instrument measures the compressive force by crushing the specimen between two platens. The pressure values obtained are used to evaluate the compression resistance and structural integrity of the packaging.

Product Features

High Precision: Equipped with imported high-precision sensors to ensure accurate and reliable test results.
Adjustable Parameters: Force values can be adjusted freely within the testing range to meet diverse testing requirements.
Ergonomic Design: Features a desktop-style structure optimized for seated operation, ensuring user comfort.
Data Management: Includes a built-in micro-printer for the immediate generation of hard-copy test data.

Technical Parameters

Item	Parameter
Accuracy	≤±1%
Resolution	0.1N
Deformation Error	≤±1mm
Platen Parallelism	≤1mm
Test Speed	(10士3) mm/min (Stacking :5士1mm/min)
Return Speed	100mm/min
Test Modes	Crush Resistance / Strength Test, Constant Value / Fixed Load Test, Stacking Test
Power Supply	AC 220V/50Hz
Unit Conversion	N/Lbf/kgf
Operating Environment	Temp.20±10°C, , Humidity <85%RH
Measurement Range	25-5000N/50-10000N/100-20000N/100-50000N (Customizable)
Test Space (Dimensions)	600400600(mm),800600800 (mm),10008001000 (mm),100010001200 (mm)(Customizable)

Equipment Configuration

Standard Configuration

Mainframe, Power Cable, Data Cable

User-provided Items
