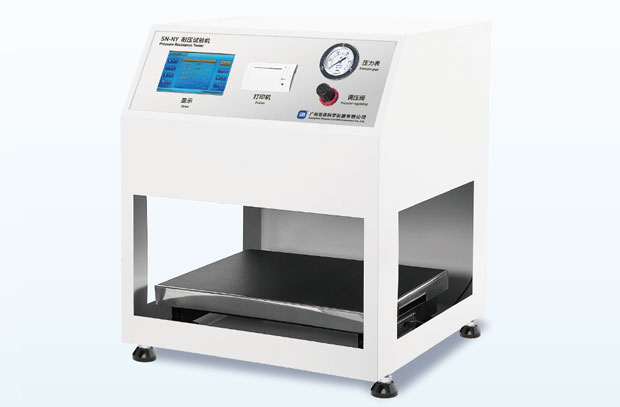

SN-NYE Pressure Resistance Tester

Standards

ASTM D642、ASTM D4169、TAPPI T804、ISO 12048、JIS Z0212、GB/T 16491、GB/T 4857.4、QB/T 1048-2004

Application Fields

Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

Intended Use

Specifically designed to determine the compression resistance (pressure endurance) of packaging bags. It features pneumatic pressure control, allowing the applied force to be adjusted freely within the specified range.

Operating Principle

The instrument evaluates the compression strength of the specimen by applying or releasing pressure through a high-precision pneumatic cylinder.

Product Features

  1. High Precision: Utilizes imported sensors to ensure accurate and reliable test results.
  2. Adjustable Pressure: The pressure can be precisely adjusted across the entire testing range to meet diverse customer requirements.
  3. Ergonomic Design: Features a compact desktop structure designed for seated operation, ensuring ease and comfort for the operator.
  4. Data Printing: Equipped with a micro-printer for the immediate generation of hard-copy test data.

Technical Parameters

Item

Parameter

Measurement Range

25-250kg

Test Stroke

0-150mm

Resolution

0.001kg

Working Area

400mm*500mm

Number of Test Platens

1

Dimensions

580mm*480mm*670mm

Inlet Pressure

0~0.8Mpa

Power Supply

AC 220V/50Hz

Equipment Configuration

Standard Configuration

Mainframe, Power Cable

User-provided Items

Compressed Air

Service Commitment

Pre-sales Service

We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.

In-sales Service

We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.

After-sales Service

In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
