Standards
GB/T 8809、ASTM D3420、NF T54-116
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

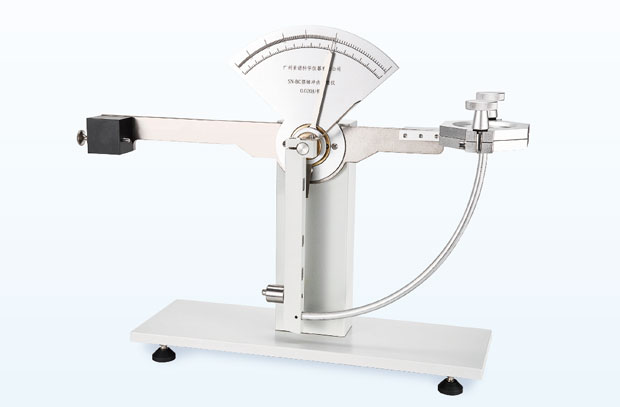

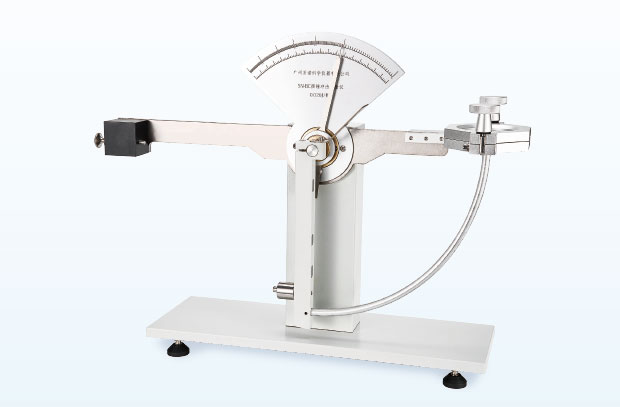

Suitable for pendulum impact resistance testing of plastic films, sheets, composite films, paper, and paperboard.
A hemispherical impact head strikes and penetrates the specimen at a specific speed. The energy consumed by the impact head is measured to evaluate the pendulum impact resistance of the film.
- Dial and pointer provide intuitive display of test results.
- Manual operation, simple and easy to use.
- Customizable impact head specifications and fixtures.
|
Item
|
Parameter
|
|
Max Impact Energy
|
3J
|
|
Resolution (Min. Graduation)
|
0.01J
|
|
Pendulum Start Angle
|
90°
|
|
Pendulum Swing Radius
|
R265mm
|
|
Impact Velocity
|
2.5m/s
|
|
Impact Head Size
|
Φ12.7mm、Φ25.4mm
|
|
Specimen Holder Diameter
|
Φ60mm、Φ89mm
|
|
Required Specimen Size
|
100mm*100mm
|
|
Dimensions
|
760mm*200mm*580mm
|
Mainframe, Impact Heads (φ12.7mm &φ25.4 mm), Specimen Holders ( φ60mm &φ89 mm), One Counterweight
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
