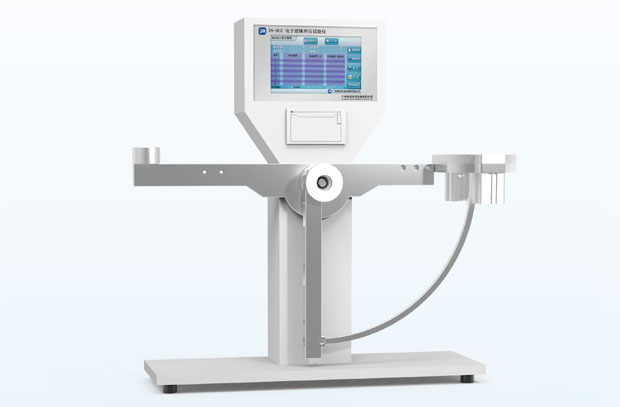

SN-BC2E Electronic Pendulum Impact Tester

Standards

GB/T 8809、ASTM D3420、NF T54-116

Application Fields

Intended Use

Suitable for pendulum impact resistance testing of plastic films, sheets, composite films, paper, and paperboard.

Operating Principle

A hemispherical impact head strikes and penetrates the specimen at a specific speed. The energy consumed by the impact head is measured to evaluate the pendulum impact resistance of the material.

Product Features

Microcomputer controlled with a touchscreen display.
Electronic measurement with pneumatic specimen clamping and electric pendulum release.
Features a leveling auxiliary system, test data statistics, adjustable measuring ranges, and a built-in micro-printer.

Technical Parameters

Item	Parameter
Impact Energy	1J, 2J, 3J (Standard) (5J customizable）
Resolution	0.001J
Impact Head Size	Φ25.4 mm, φ12.7 mm (Non-standard customizable）
Clamp Diameter	Φ60mm、Φ89mm
Specimen Size	100mm*100mm or Φ100mm
Mainframe Dimensions	650mm270mm730mm

Equipment Configuration

Standard Configuration

Mainframe, 3J Basic Pendulum (1J/2J customizable), 3J Capacity, One Counterweight, One 25.4 mm Standard Impact Head, One 12.7 mm Standard Impact Head, One pair of φ89mm Standard Clamping Plates (with O-rings), One pair of φ60 mm Standard Clamping Plates (with O-rings), Micro-printer.

User-provided Items

Compressed Air
