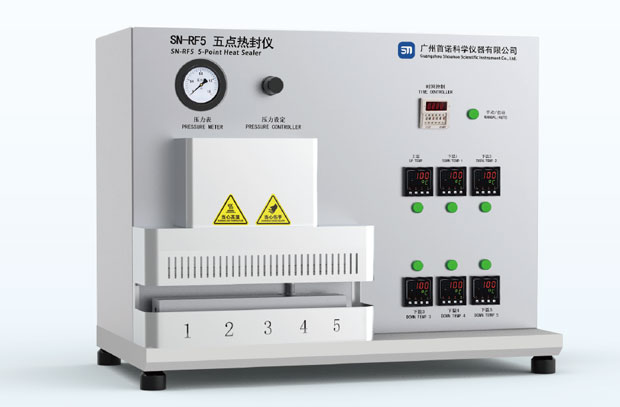

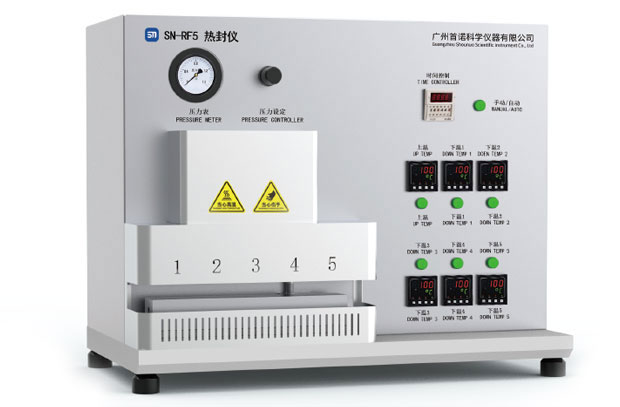

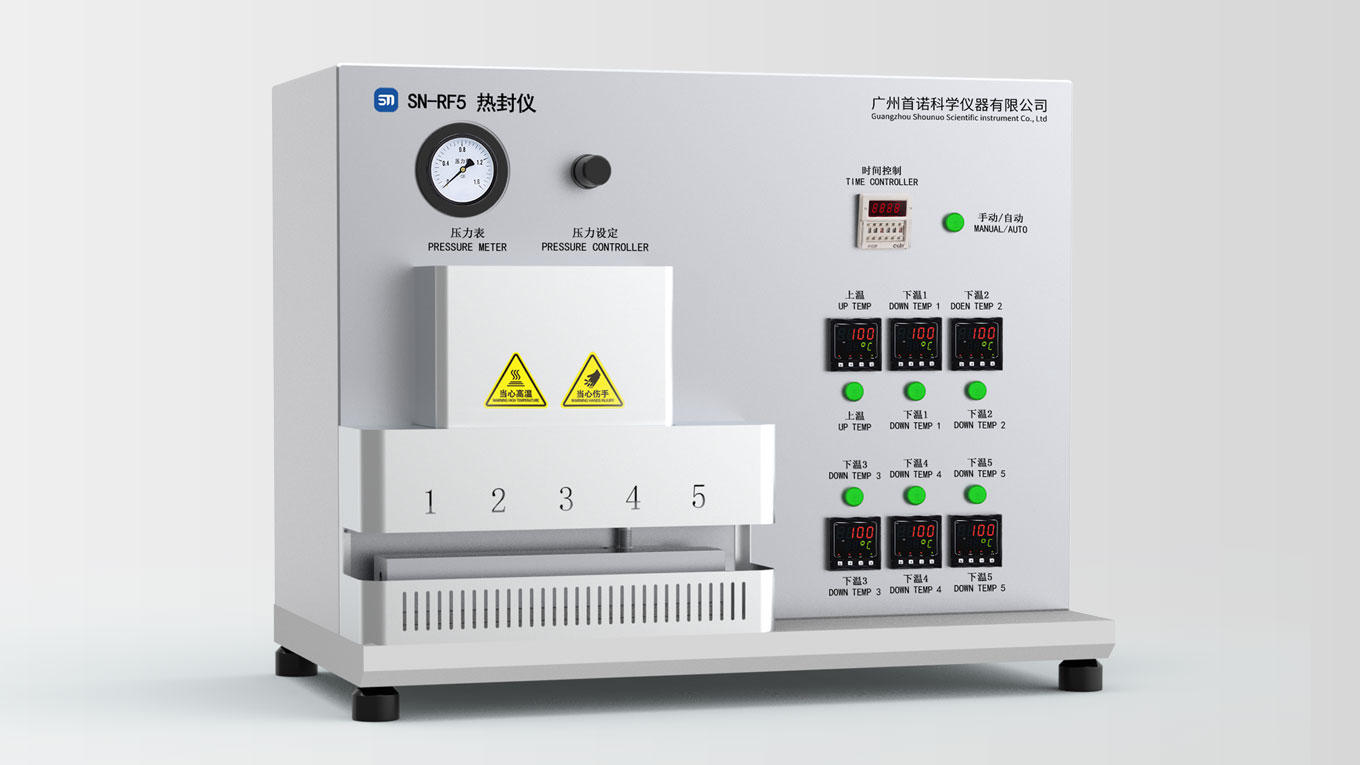

SN-RF5E 5-Point Heat Sealer

Name: SN-RF5E 5-Point Heat Sealer
Brand: Guangzhou Shounuo Scientific Instrument Co., Ltd
Availability: InStock

Intended Use：

Suitable for heat sealing tests of various film materials, including plastic films, plastic composite films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil, and aluminum foil composite films.

Operating Principle：

Utilizes the heat-pressure sealing method. The specimen is placed between the upper and lower heat-sealing jaws, and sealing is completed under preset temperature, pressure, and time conditions.

Product Features：

Dual temperature, dual control, and dual display. Features an external three-axis cylinder for smoother downward pressure; all core components are imported.
Digital P.I.D. temperature control technology reaches the set temperature rapidly and prevents temperature fluctuations effectively.
A wide range of control for temperature, pressure, and time satisfies diverse experimental requirements.
Manual and foot-switch start modes, plus anti-scald safety design, ensure convenience and operational safety.

Standards：

QB/T 2358、ASTM F 2029、YBB00122003

Application Fields：

Technical Parameters：

Item

Parameter

Item

Parameter

Heat Sealing Temp

Ambient +5 ~ 300°C

Temp. Accuracy

±0.1℃

Sealing Time

0.01s～99.99h

Sealing Pressure

0～8kg(0～0.8Mpa)

Sealing Area

300 * 5mm or 300 * 10mm Smooth (Lower jaw with silicone pad)

Heating Form

Dual Heating

Dimensions

700mm*400mm*560mm

Power Supply

AC 220V/50Hz

Standard Configuration：

Mainframe, Foot Switch, Power Cable

User-provided Items：

Compressed Air
