Standards
GB 8808、GB 13022、GB/T 1040、GB/T 7753、GB/T 7754、GB/T 453、GB/T 17200、GB/T 16578.1、QB/T 1130、GB/T 2790、GB/T 2791、GB/T 2792、GB/T 10004、GB/T 17590、JJG 139、GB/T 6344、GB 10808、YBB 00112003、YBB 00102003、YBB 00132002、YBB 00202004、ASTM D828、ASTM E4、ASTM D882、ASTM D1938、ASTM D3330、ASTM F88、ASTM F904、JIS P8113、QB/T 2358
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

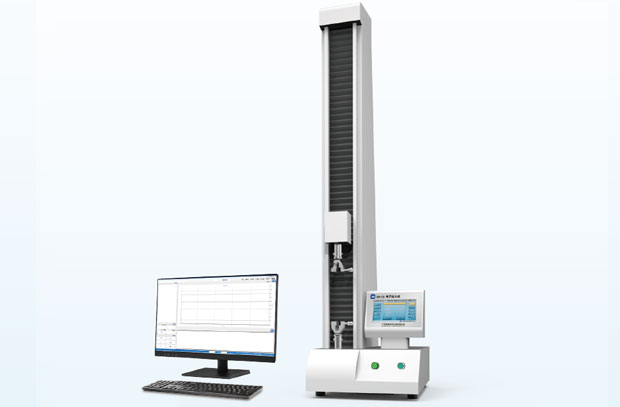

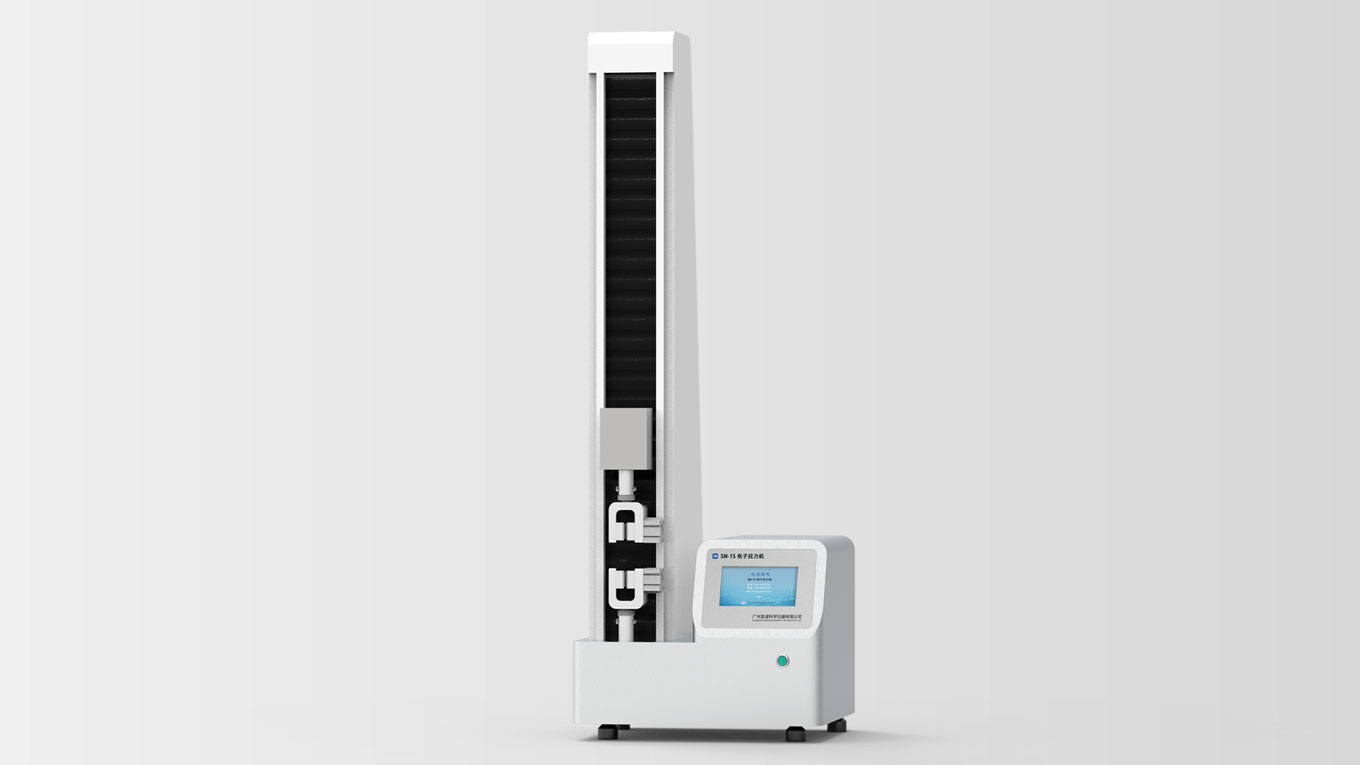

Suitable for testing mechanical properties such as tensile, peeling, heat sealing, tearing, puncturing, stiffness, compression, bending, and shearing of various materials, including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, paper, and non-woven fabrics. It offers high precision, easy operation, intuitive results, and high reliability. Meeting the technical requirements of national supervision departments, it is widely used for quality control in food and pharmaceutical industries, as well as in research institutions and universities.
The specimen is clamped between two grips that move relative to each other. A force sensor on the moving grip and a built-in displacement sensor collect data on force and displacement changes during the test. These data are then used to calculate performance indicators such as tensile strength, tearing strength, and deformation rate.
- Simple operation and accurate experimental data.
- Comprehensive functionality, capable of performing tensile, bending, puncturing, sealing, peeling, heat sealing, tearing, shearing, and elastic modulus tests.
- 0-500N is the most practical and valuable test range.
- Experimental results are saved automatically, with the option to connect a printer for test reports.
- Core components are imported to ensure high precision.
- Test speed and grip distance are adjustable to meet diverse requirements.
- Equipped with a 7-inch touchscreen for intelligent interaction. The next-generation OS provides a smartphone-like intuitive interface with clear operation logic.
- Optional pneumatic grips are available to enhance testing efficiency.
|
Item
|
Parameter
|
|
Test Range
|
0-500 N (Optional for other ranges)
|
|
Elongation
|
1250%
|
|
Test Speed
|
0-500 mm/min (Stepless speed regulation)
|
|
Displacement Accuracy
|
Within ±0.5% of reading
|
|
Sensor Accuracy
|
Grade 0.5
|
|
Force Resolution
|
0.001N
|
|
Effective Stroke
|
800mm
|
|
Power Supply
|
AC 220V/50 Hz
|
|
Power
|
1000W
|
|
Dimensions
|
440mm*500mm*1400mm
|
Standard Configuration
Mainframe, Tensile Grips, Puncture Fixture, Professional Software, Power Cable, Sampling Template
