Standards
ASTM F1249、ISO 15106-2、GB/T 26253、JIS K7129、YBB00092003-2015
Application Fields
Packaging | Food | Pharmaceuticals | New Materials | Chemical Industry | Printing

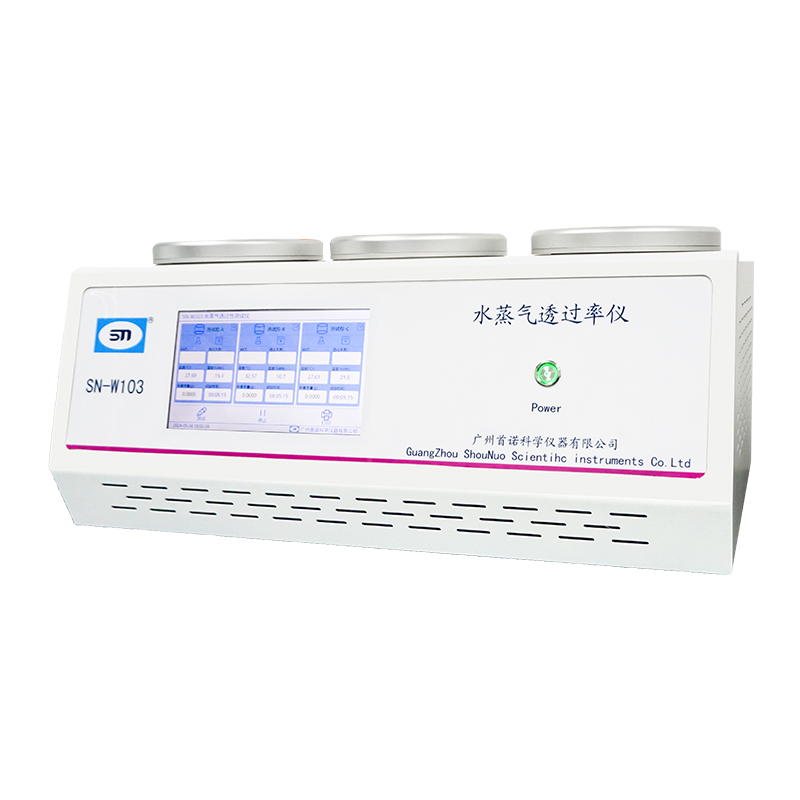

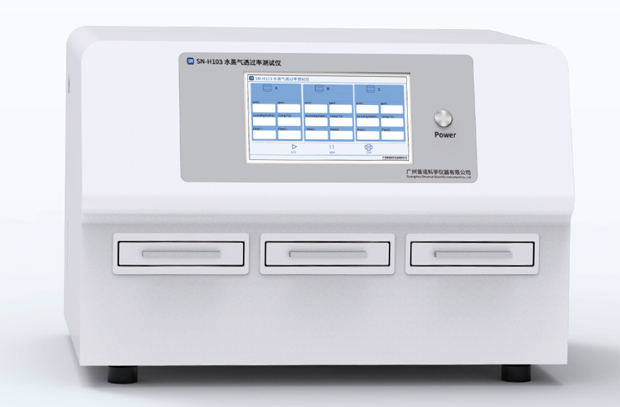

Based on the infrared moisture sensor principle, it provides high-precision and high-efficiency water vapor transmission rate (WVTR) testing for high and medium barrier materials. It is suitable for WVTR testing of film materials such as plastic films, paper-plastic composite films, co-extruded films, aluminized films, aluminum foil composite films, and glass fiber aluminum foil paper composite films, as well as sheet materials like PP, PVC, PVDC, metal foils, rubber, and silicon wafers in the fields of food, pharmaceuticals, medical devices, daily chemicals, photovoltaics, electronics, etc.
Based on the principle of the infrared moisture sensor. The pre-conditioned specimen is clamped between the test chambers. Nitrogen with stable relative humidity flows on one side of the film, while dry nitrogen flows on the other side. Due to the humidity gradient, water vapor diffuses from the high-humidity side through the film to the low-humidity side. On the low-humidity side, the permeated water vapor is carried by the flowing dry nitrogen to the infrared moisture sensor. Different concentrations of water vapor generate distinct optical signals, which are analyzed to determine current values and subsequently calculate the water vapor transmission rate (WVTR) of the specimen.
- Equipped with an imported infrared moisture sensor for a lower detection limit. Designed in accordance with the ASTM F1249 standard, it offers an ultra-long, non-consumable service life. Features over-limit alarms and automatic protection.
- Accurate Data: Utilizes 360° airflow circulation constant temperature technology for superior thermal stability. Equipped with high-precision temperature and humidity sensors for real-time monitoring and recording. Automatic control of flow rate, temperature, and relative humidity during the test ensures higher precision and test repeatability of 0.005g/(m2·24h) .
- Intelligent Control: Operated via a 10.1-inch touchscreen for enhanced convenience. In automatic mode, simply input the test temperature and humidity to start fully automated testing with one click. The new test chamber features pneumatic clamping for easy specimen replacement.
- Safe and Reliable: Operational Safety—Embedded with a proprietary high-end electronic system to eliminate system failures caused by computer viruses, ensuring reliable operation and data storage security. Operational Security—Equipped with various smart sensors (including optical) and audible/visual alarms to ensure safe operation. Performance Reliability—The instrument utilizes components from world-renowned brands for long-term stability.
- Powerful Functions: Professional test modes offer flexible and comprehensive control functions to meet research needs. Provides real-time curves for WVTR, temperature, and humidity. Ultra-wide test range and temperature range are available (customizable) to meet the barrier testing requirements of various materials under different conditions.
|
Item
|
Parameter
|
|
Test Range
|
0.02～50g/(㎡·24h)
|
|
Resolution
|
0.0001g/(㎡·24h)
|
|
Temperature Range
|
5℃～55℃
|
|
Temp. Control Accuracy
|
±0.5℃
|
|
Humidity Range
|
5%RH～90%RH（±2%RH）, 100%RH
|
|
Humidity Control Accuracy
|
±1%RH
|
|
Gas Source Pressure
|
≥0.4MPa
|
|
Nitrogen Pressure
|
0.1 MPa
|
|
Test Area
|
Approx. 50.26cm²(Optional）
|
|
Number of Specimens
|
3
|
|
Power Supply
|
AC 220V/50Hz
|
Standard Configuration
Mainframe, Power Cable, Communication Cable, Φ8 mm PU Tubing, Φ3 mm Stainless Steel Tube, Sample Cutter, Vacuum Grease, Installation Accessories
User-provided Items
Compressed Air (Pressure ≥0.4 MPa, Φ8 mm PU tubing), High-purity Nitrogen (Purity 99.999%), Pressure Reducing Valve (Output 0-0.4 MPa), Distilled Water, PC
We provide detailed product technical specifications, application scenarios, and other relevant information to help customers select the most suitable instruments and equipment. We also offer comprehensive support for solution design, sample testing, on-site inspections, and other professional services.
We collaborate with customers to clearly define all contract details, including pricing, delivery schedule, and payment terms, and execute formal contracts. We deliver thorough operation and maintenance training to ensure customers can use the instruments correctly and efficiently. Additionally, we assist with acceptance procedures and perform rigorous pre-shipment debugging and testing on every instrument to guarantee full compliance with contract requirements.
In addition to a one-year warranty period, we provide lifelong remote technical support to resolve any usage issues. We also offer regular maintenance services and respond promptly and efficiently to specific customer needs.
